Piezoelectric vibrator

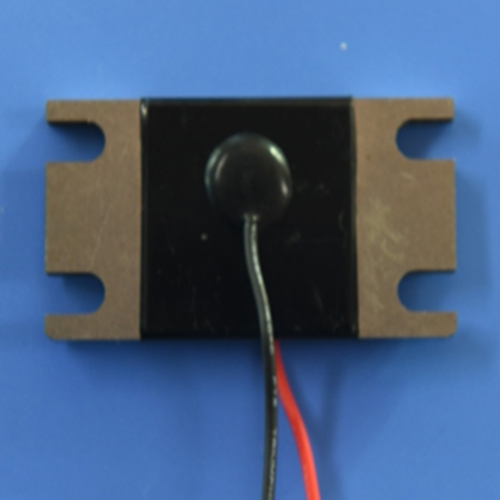

Piezoelectric vibrator is composed of piezoelectric ceramic vibrator, metal base and electrode lead. It is mainly used in the automatic feeding system of piezoelectric vibrator, especially for the automatic feeding of micro parts
The main features are as follows:
(1) Simple structure, easy installation and maintenance;
(2) Piezoelectric ceramic is used as the driving source, which is easy to manufacture without mechanical transmission parts;
(3) No transmission inertia, almost no acceleration and deceleration process, start and stop quickly, quick response;
(4) It does not produce interference electromagnetic field and is not affected by the type of electromagnetic interference;
(5) Working in low frequency or ultrasonic band, low noise;
(6) When working in resonance or non resonance state, the energy consumption is less, which is more than 70% less than that of ordinary electromagnetic vibration disk.
Working environment:
|
Working environment temperature |
Relative humidity of working environment |
Working voltage |
Working frequency |
|
-40~85℃ |
10%~90% |
0~300V |
20~500Hz |
Application: widely used in battery, electronic connector and other electronic components, hardware, medical equipment, food, packaging and other industries.
Main technical parameters:
|
Serial number |
Model and specification |

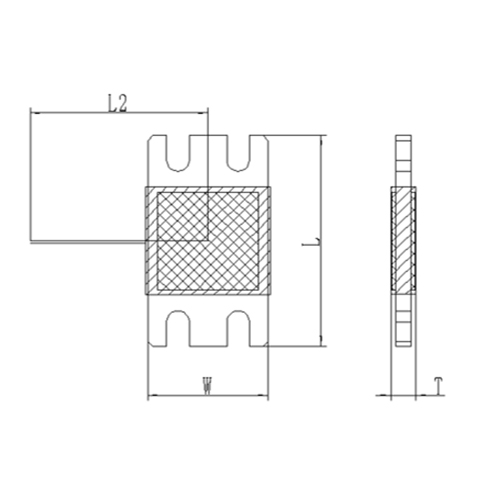

Overall dimension (mm) |
Electrical performance parameters |
|||||
|
long L±0.1 |
wide W±0.1 |
thick T±1 |
Lead length L3±3 |
Free capacitance (nF) |
Nominal frequency (kHz) |
Equivalent resistance MAX(Ω) |
||
|
1 |
HLVP-163901 |
39 |
16 |
3.6 |
200 |
18 |
15 |
300 |
|
2 |
HLVP-244301 |
43 |
24 |
4.9 |
200 |
19 |
11 |
300 |
|
3 |
HLVP-244302 |
43 |
24 |
4.3 |
200 |
26 |
10 |
300 |
|
4 |
HLVP-326001 |
60 |
31.5 |
4.3 |
200 |
60 |
5.5 |
300 |
|
5 |
HLVP-326002 |
60 |
31.5 |
6.3 |
200 |
60 |
8.5 |
300 |
|
6 |
HLVP-386002 |
60 |
38 |
4.8 |
200 |
70 |
7.0 |
300 |
|
7 |
HLVP-426301 |
63 |
42 |
6.8 |
200 |
75 |
15 |
300 |
|
8 |
HLVP-508601 |
86 |
50 |
7.3 |
300 |
100 |
10 |
300 |
