High power piezoelectric ceramic ultrasonic energy exchange sheet
The high-power piezoelectric ceramic ultrasonic transducer is made of piezoelectric ceramic material
(1) Simple structure, easy installation and maintenance;
(2) High electromechanical conversion efficiency;
(3) Low loss and calorific value;
(4) Stable performance and long service life.

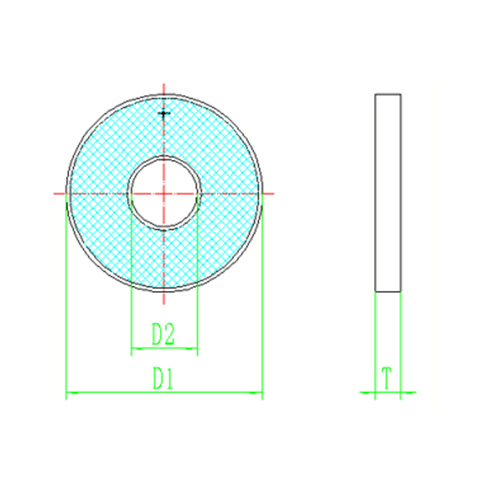

Model and size:
|
Serial number |
Model and specification |
External diameter D1（mm） |
Internal diameterD2（mm） |
Thickness T（mm） |
|
1 |
HLΦ50×Φ17×6.5-35-C2.4 |
50±0.1 |
17±0.3 |
6.5±0.05 |
|
2 |
HLΦ50×Φ17×5-35-C3.0 |
50±0.1 |
17±0.3 |
5±0.05 |
|
3 |
HLΦ50×Φ20×6-33-C2.2 |
50±0.1 |
20±0.3 |
6±0.05 |
|
4 |
HLΦ60×Φ30×10-25-C1.9 |
60±0.1 |
30±0.5 |
10±0.1 |
Application: widely used in metal welding, plastic welding, ultrasonic cleaning, ultrasonic medical treatment, ultrasonic processing and other fields.
Use environment:
|
Working environment temperature |
Relative humidity of working environment |
Atmospheric pressure of working environment |
Storage ambient temperature |
|
-10~50℃ |
35%~85% |
80~106kPa |
-10~40℃ ≯80%RH |
